NCVT Annual Exam ITI ED Paper with Solution इंजनियरिंग ड्राइंग का प्रथम वर्ष का पेपर जो सभी आईटीआई इंजनियरिंग ट्रेड्स के लिए कॉमन रहता है, हल सहित यहाँ उपलब्ध करवाया जा रहा है। Engineering Drawing Solved Paper for First Year Electrician, Fitter, etc.

Ncvt ITI Annual Exam Question Paper November 2020

ITI ED Question Paper
Annual Exam Paper November 2020

Engineering Drawing Paper 1st Year Solution

Q.1 Draw free hand drawing of :- a) Scriber    b) center punch 60°

Ans.1
Scriber

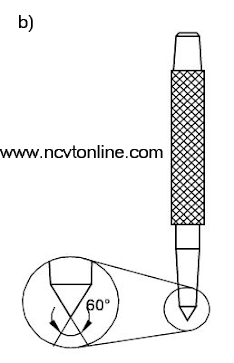

center punch 60°


Q.2 Draw an Ellipse by four center method Major axis 80mm, minor axis 40mm.

Ans.3
Ellipse by four center method



Q.3 Draw the given cover plate and place the dimensions in the Aligned system.

Ans.3
Aligned system


Q.4 Draw Front view, Side View and Top View in 3rd angle projection of the object

Ans.4
3rd angle projection
